Description

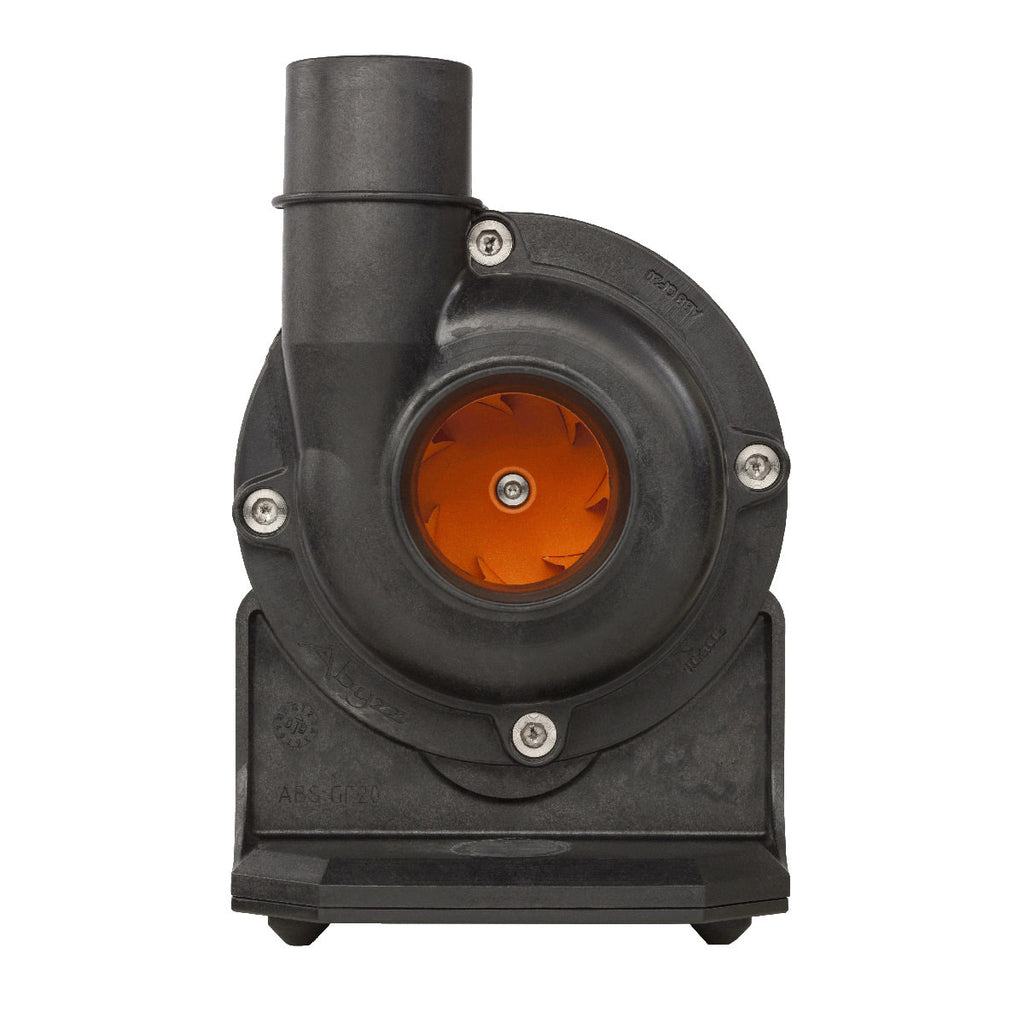

Abyzz A400IPU – Adjustable high-performance pump

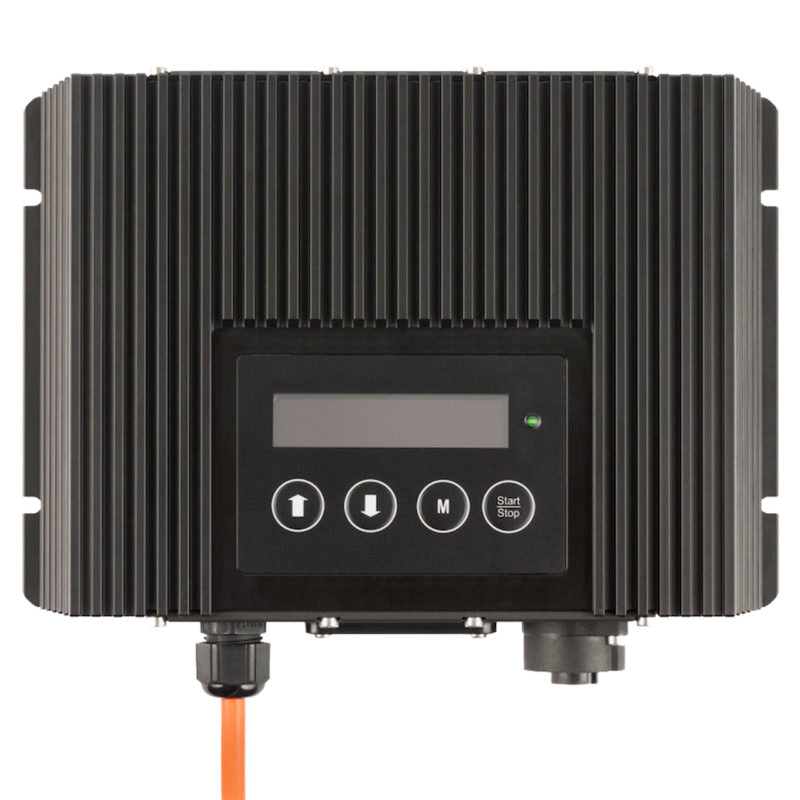

The innovative Abyzz A400IPU pump with titanium rotor consists of a programmable, high-performance, menu-driven, splash-water protected electronics (driver) and a sinusoidal-commutated synchronous motor (pump).
The high efficiency of the motor makes the pump, in conjunction with the adjustable to your power requirements speed, an energy-saving solution. The integrated bearing rinse offers optimum protection against calcification and, in conjunction with the silicon carbide bearings used and a special carbide shaft, ensures low-maintenance operation.
The processed materials are designed for a long service life and meet the highest requirements and quality standards. The product is developed and produced in Germany by venotec.
Special features
- Adjustable speed range (0 … 100%)
- Programmable control (eg wave and random mode)
- Extensive protection against e.g. Dry running, overtemperature and overcurrent
- Smooth start
- Bus-capable interface for peripherals
- Lockable plug contacts IP65
- Low noise operation
Applications
- Freshwater and saltwater aquaristics
- Pond filter systems
- streams
Delivery

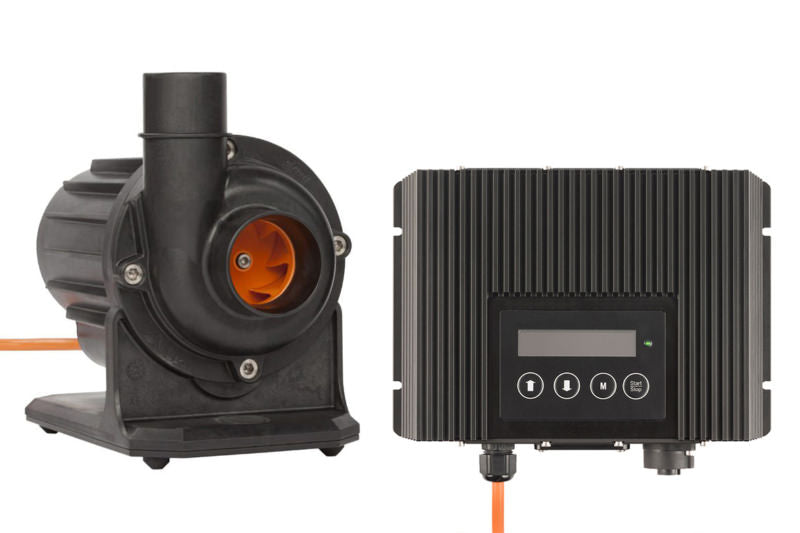

- delivery Abyzz A400 pump and driver A400 IPU splash-water protected
- Power cable (1.5 m) and connecting cable
Installation either submerged or dry in piping, not self-priming.
The inlet / outlet connections are suitable for PVC / ABS adhesive fittings
Specifications:

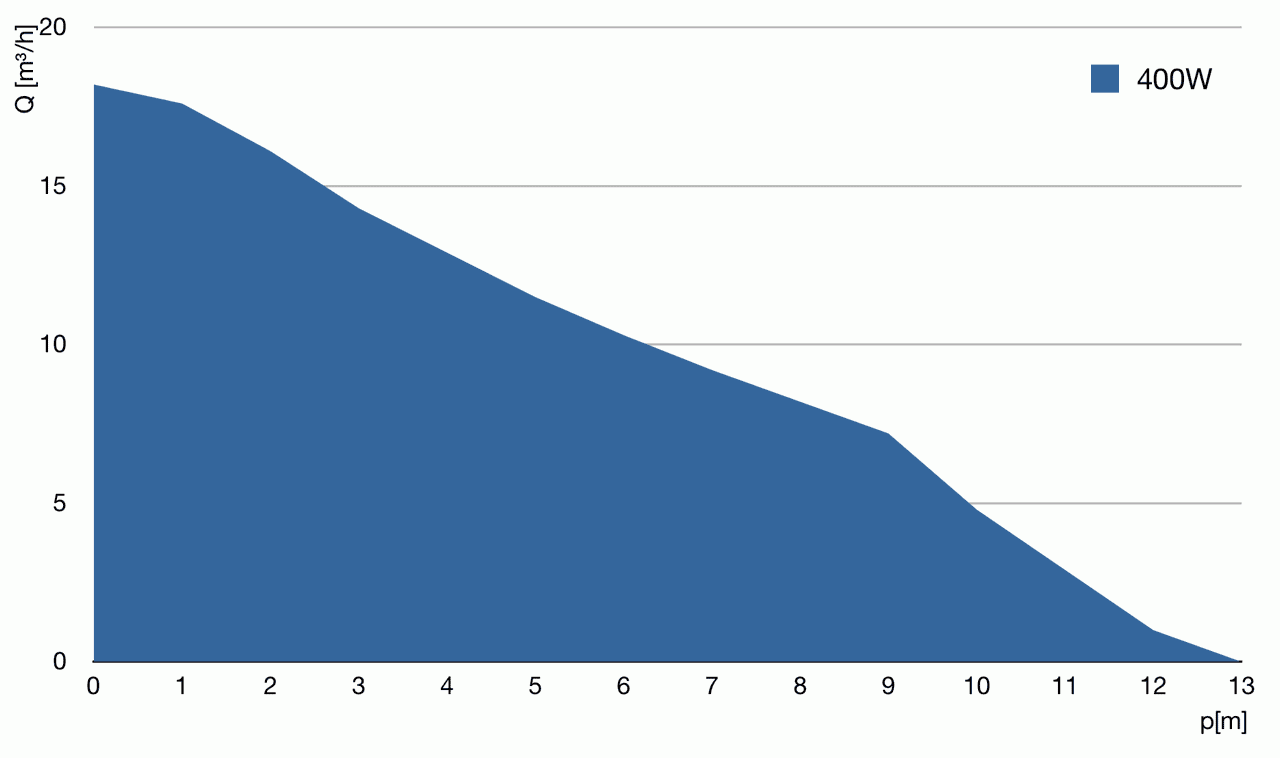

- Maximum flow rate: 6,200 GPH (BOOSTMODE®)
- Rated flow rate: 4,900 GPH
- Pump ambient temperature: 34-122°F
- Driver ambient temperature: 32-86°F (without additional cooling)
- Maximum discharge speed: 24.6 feet per second
- Delivery height: 41 feet
- Power consumption: 4-400W
- Operating voltage: 100-240V~
- Operating frequency: 50-60Hz
- Maximum operating pressure: 17.4 PSI
- Maximum immersion depth: 6.5 feet
- Pump cable length: 3 or 10m (10 or 30 feet)
- Inlet/outlet connections (metric) : 50/40mm (suitable for PVC/AVB adhesive fittings, imperial adapters available)
