Ecotech Radion Multi Light RMS - Track / Rail

Multi-Light Radion Mounting System - Track

The Multi-Light RMS is modular and customizable mounting system for Radion XR15 and XR30 systems.

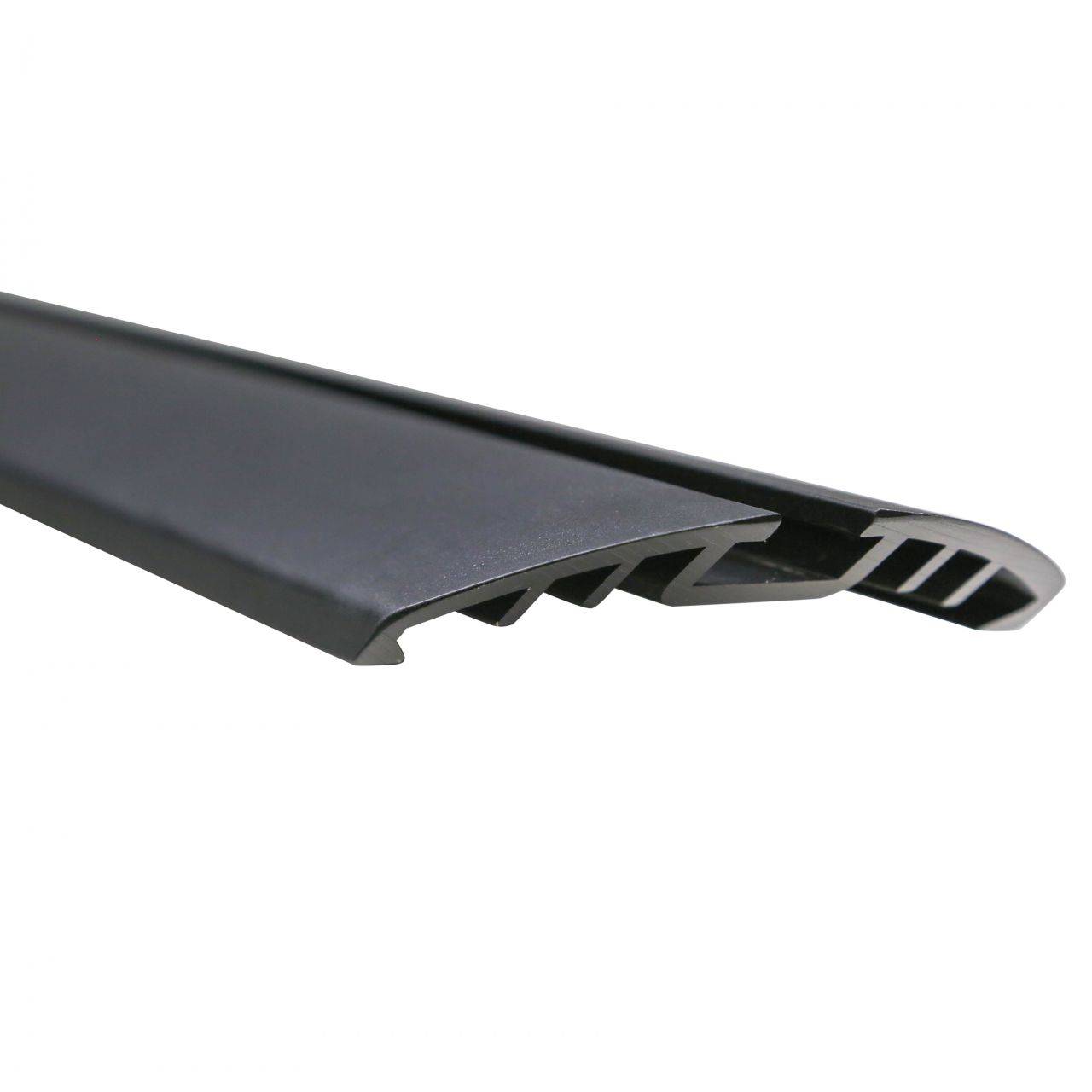

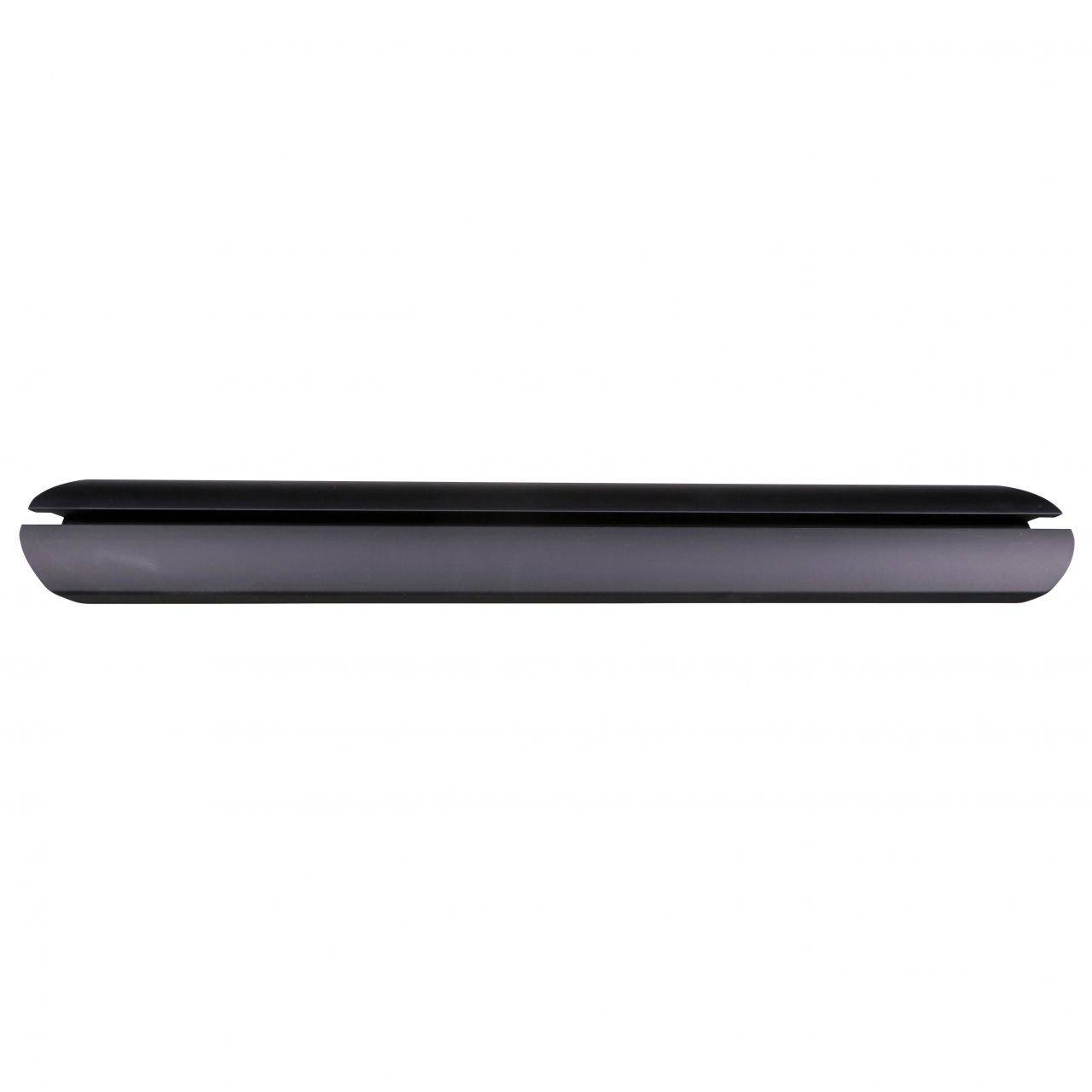

The Multi-Light Radion Mounting System - Track is the horizontal piece that spans between the RMS Multi-Light Arms

The Multi-Light RMS features:

• Built-in cable management
• Rimmed, rlmless, and eurobraced tank capability
• Rigid and light-weight
• Tough anodized aluminum finish
• A single Multi-Light RMS can support XR15 and XR30 lights on the same track
• Flexible slide mounts allow for precise placement of your Radions
• Mounts Radions approximately 7 inches (18cm) above the tank

The Multi-Light Radion Mounting System requires the purchase of the three main components:

1. RMS Track - Horizontal piece that spans between the RMS Multi-Light Arms
2. RMS Arm - Vertical pieces that mount to your tank and support the RMS Multi-Light system
3. RMS Slides - Adjustable mounting brackets that attach to the RMS Track and support the Radion LED lights

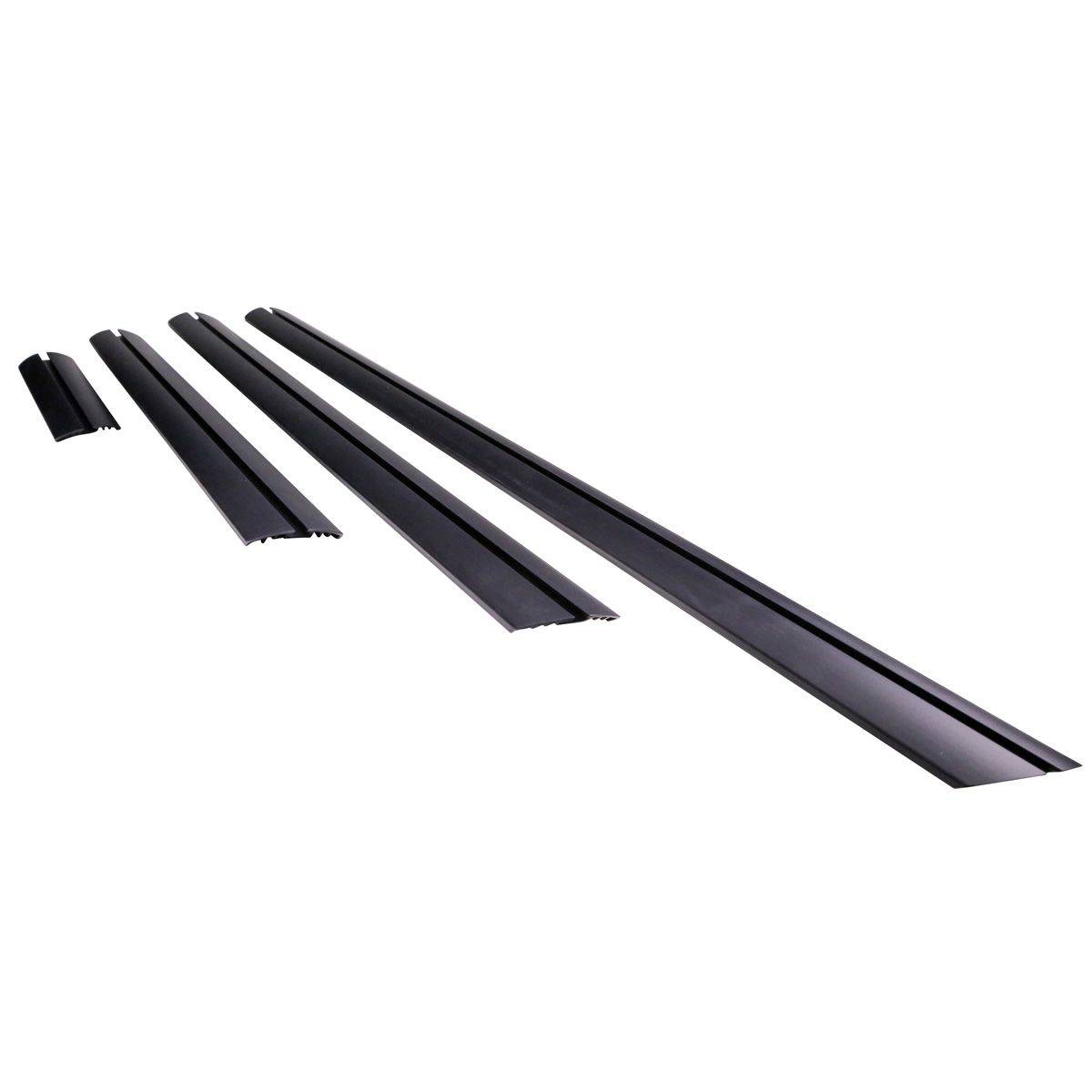

Multi-Light RMS Track Lengths
Track Length Model Number BRS SKU Number Fits Tanks
20.5" XR703-0205 208938 18.5 - 28.5 in (47 - 72.4 cm) wide
30.5" XR703-0305 208939 28.5 - 38.5 in (72.4 - 97.8 cm) wide
40.5" XR703-0405 208940 38.5 - 48.5 in (97.8 - 123.2 cm) wide
50.5" XR703-0505 208941 48.5 - 58.5 in (123.2 - 148.6 cm) wide
60.5" XR703-0605 208942 58.5 - 68.5 in (148.6 - 174 cm) wide
70.5" XR703-0705 208943 68.5 - 78.5 in (174 - 199.4 cm) wide
80.5" XR703-0805 208944 78.5 - 88.5 in (199.4 - 224.8 cm) wide
90.5' XR703-0905 208945 88.5 - 98.5 in (224.8 - 250.2 cm) wide
