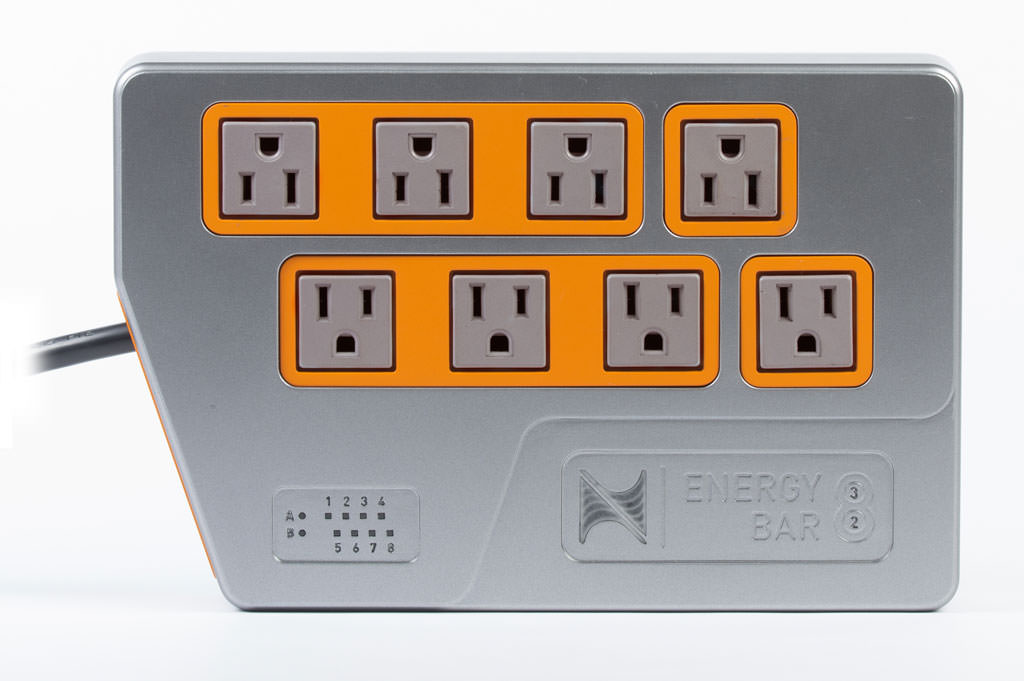

ENERGY BAR 832 – THE ULTIMATE POWER CONTROL HUB
When we decided to create an Energy Bar for the most recently released Apex, we designed it from the ground up. Not only does the Energy Bar 832 have eight 120V AC outlets, but it includes an internal 100W 24VDC power supply as well. That power supply feeds three built-in 1LINK ports as well as two 24VDC accessory ports.
And, each individual outlet has independent power monitoring and there are individual LED indicators for each outlet. Read on and watch the videos for more info.
CERTIFIED TO UL STANDARDS
Your safety is important to Neptune Systems. This is why we design every product to established safety standards. In the case of the Energy Bar 832, and given it is a line-voltage device, we have taken that a step further and actually obtained ETL certification by Intertek, a nationally recognized testing laboratory. Click here for more details from Intertek on this certification.
POWER MONITORING
For years we have been asked to provide power monitoring of the individual devices connected to each outlet – but it just wasn’t possible without pricing the product out of the range of most consumers. Now it’s here and with comes tons of benefits.
With this power information regularly monitored, you now know when your pump, skimmer, powerhead, UV, or any other device is not operating normally and an alert message can be sent. This enables you to catch issues right when they happen – or better yet when they are on the road to failure.
Also, for many of us the cost of the electricity to run a successful aquarium is a major concern in our household. Even for those where electricity is cheap, we believe most aquarists care a great deal about their energy consumption and its effect on the environment. Ironically, our energy usage could be directly connected to excess greenhouse gasses, the warming of the oceans, and the bleaching of the corals!
However, armed with this power usage information, we believe aquarists will not only be able to make operating and purchase decisions that will save them hundreds of dollars a year, but they will also be able to reduce their carbon footprint.
BUILT-IN 1LINK AND 24VDC PORTS
This Energy Bar has a built-in 100W, 24VDC power supply that can control up to three Neptune Systems 1LINK products like the WAV and DOS. It also includes two switchable 24V DC on/off outlets that are compatible with any 24V device under 30W and Neptune Systems 24V accessories like our Practical Multi-purpose Utility Pump (PMUP) and solenoid valve.
INDIVIDUAL OUTLET INDICATOR LED
Each Energy Bar AC outlet as well as the two 24VDC accessory ports have their own status LED. This LED tells you when that outlet is energized. The LED will also blink rapidly if a device is plugged in that exceeds the current capability for that outlet.
ALARMS AND DECISIONS BASED ON POWER
Since the Apex is receiving continual power usage data from the Energy Bar 832, it can be configured to send you notifications when a device is not using power as it should be. An example would be a return pump showing no power consumption when the outlet is on. Or, tell you when a skimmer has a clogged airline because power consumption will show differently than normal operation. These high and low limits are completed customizable by individual outlet. You can even use this power data to control other devices.
ALL OUTLETS RELAY SWITCHED
Times have changed and it is fairly uncommon now for aquariums to have AC devices that must be cycled on and off continuously. This means that we could now switch all AC outlets to relay switching.
