Red Sea REEFER™ Systems
Designed as the perfect reefscaping canvas,
REEFER G2+ tanks combine REEF-SPEC
infrastructure with the freedom to install
all your preferred hardware.
REEFER G2+ systems come with new &
improved water management,
extra-fortified cabinets & aquariums,
REEF-SPEC ReefMat-ready sumps,
they include the ReefATO+ system as standard
and an optional 5-year extended warranty.
REEFER G2+ SYSTEMS come in a huge variety of sizes
(from 170 L / 45 gal to 1000 L / 264 gal), and are the ideal
platform for the full “Red Sea Experience”,
combining our LED lighting, wave pumps, dosers,
and filtration devices into one smart,
synchronized eco-system operated via the ReefBeat App.

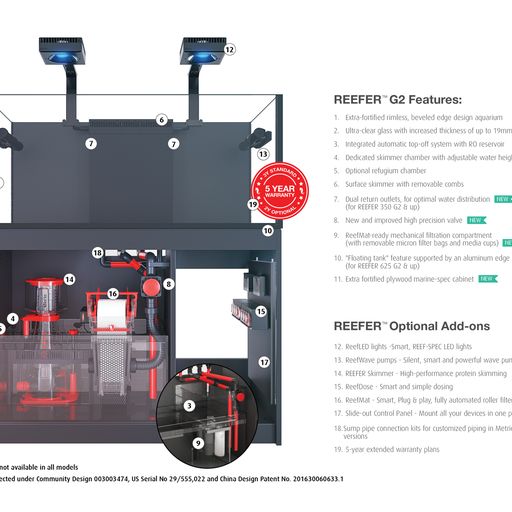

New & Improved Features
- REEFER G2+ aquariums are rimless, and constructed from ultra-clear, beveled-edge glass with increased thickness of up to 19 mm or 0.75”.
- Extra-fortified plywood marine-spec laminated cabinets follow the contour of the glass, and are all made of plywood. Larger models are now reinforced with aluminum supports.
- All REEFER G2+ models come with the ReefATO+ system, which keeps your water volume and salinity stable, and includes an accurate temperature monitor as well as a highly sensitive leak detector.
- REEFER G2+ systems have a removable, ReefMat-ready mechanical filtration compartment, complete with micron filter socks and media cups.

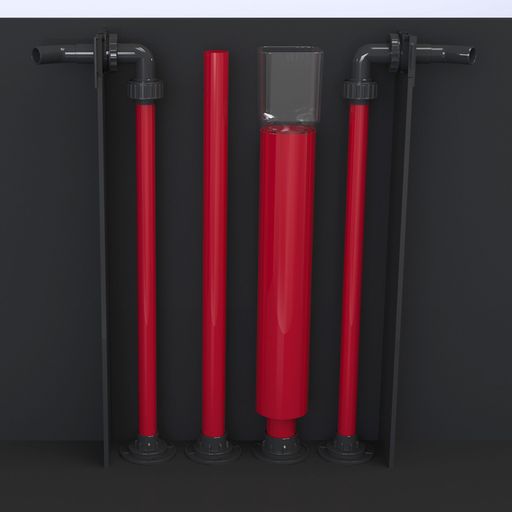

- Silent downflow system with the enlarged rectangular inlet to the downflow pipe reduces sensitivity to changes in waterflow, resulting in a quieter operation.
- Bulkhead connectors suitable for both Metric and USA standard pipes can be purchased separately, allowing you to customize your sump piping.

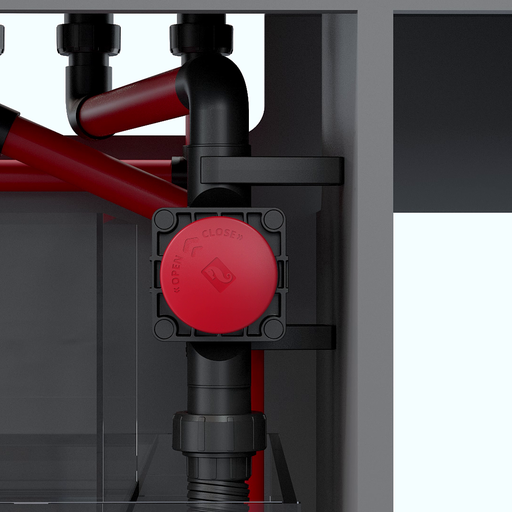

- All models now have a new and improved high precision valve on the downflow pipe, allowing for easy regulation of the flow and a near silent operation.
- Dual side-facing return pump outlets & large overflow box
For optimal water circulation and increased surface skimming
- Surface Skimmer, the piping is hidden inside a large central overflow box, which has a large surface skimmer with removable comb parts, for easy cleaning.

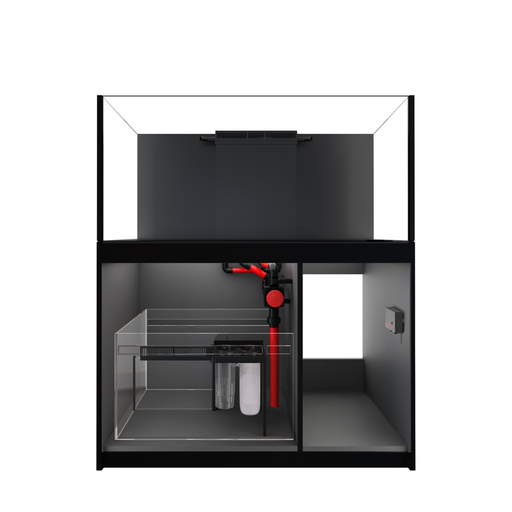

Professional REEF-SPEC sump, including:
- The professional sump includes a removable mechanical filtration media compartment (with micron filters & filter cups), an optional refugium compartment, an adjustable height skimmer chamber for optimal skimmer performance, and a bubble trap to prevent air bubbles from returning to the aquarium.
Technical Data:
Ultra clear front and side glass
Ultra clear front glass thickness: 12 mm (1/2”)
Built in surface skimmer
Integrated automatic top up system
Display tank water volume: (L) 332 (88 gal)
In cabinet sump water volume: (L) 90 (24 gal)
Total system water volume: (L) 422 (112 gal)
RO reservoir volume: (L) 12 (3.2 gal)
Display tank length: (cm) 120 (47″)
Display tank height: (cm) 55 (22″)
Display tank width: (cm) 57.5 (22.6″)
Total system height with cabinet: (cm) 142 (56″)
Sump Water height: (cm) 27 (10.6”)
Skimmer chamber: (cm) 49 x 34 (19.3”x13.4”)
Pump chamber: (cm) 49 x 15 (19.3”x6”)
Return Pump: 3/4” threaded hose barb – Pipe Int. Dia 16mm (1”)
Recommended flow: (lph) (pump not included) 4000 (1060 gph)
More details can be found at: https://redseafish.com/aquarium-systems/reefer-series/reefer-g2-models-specs-webpage-2/#/en
